Rack PDUs
Intelligent rack PDUs. Built to your cabinet.
- 0U vertical, 120V to 415V
- 20A to 100A input
- Metered, outlet-metered, or switched
- C13, C19, C21 and combo outlets
- Locking C13 to C14 power cords
Full datasheets on request. Other configurations on request.
Lines
Each line is 0U and vertical. Length is sized to your cabinet.
P1
- Input
- 208V single-phase
- Amps
- 20A (16A rated)
- Plug
- NEMA L6-20P
- Outlets
- 20 C13 + 4 C19
- kVA
- 3.3
P2
- Input
- 120V single-phase
- Amps
- 30A (24A rated)
- Plug
- NEMA L5-30P
- Outlets
- 24 NEMA 5-20R
- kVA
- 2.9
P3
- Input
- 208V 3-phase
- Amps
- 20A (16A rated)
- Plug
- NEMA L21-20P
- Outlets
- Configurable
- kVA
- 5.8
P4
- Input
- 208V 3-phase
- Amps
- 30A (24A rated)
- Plug
- NEMA L21-30P
- Outlets
- 36 C13 + 6 C19
- kVA
- 8.6
P5
- Input
- 208V 3-phase
- Amps
- 50A (40A rated)
- Plug
- CS8365C
- Outlets
- 24 C13 + 4 C19
- kVA
- 14.4
P6
- Input
- 208V 3-phase
- Amps
- 60A (48A rated)
- Plug
- IEC 60309 60A 3P+E
- Outlets
- 30 C13 + 12 C19
- kVA
- 17.3
P7
- Input
- 415V 3-phase
- Amps
- 20A (16A rated)
- Plug
- NEMA L22-20P
- Outlets
- Configurable
- kVA
- 11.5
P8
- Input
- 415V 3-phase
- Amps
- 30A (24A rated)
- Plug
- NEMA L22-30P or IEC 60309 30A 3P+N+E
- Outlets
- 30 C13 + 12 C19
- kVA
- 17.3
P9
Case study- Input
- 415V 3-phase
- Amps
- 60A (48A rated)
- Plug
- IEC 60309 60A 3P+N+E
- Outlets
- 18 C39 + 18 C13
- kVA
- 34.5
P10
- Input
- 415V 3-phase
- Amps
- 100A (80A rated)
- Plug
- Pin and sleeve 100A 3P+N+E
- Outlets
- Configurable
- kVA
- 57.5
All 0U vertical. Length sized to your cabinet. kVA = rated current (80% of plug rating) x voltage, x 1.732 for three-phase. Other configurations and full datasheets on request.
Metering
Basic
Power only. No meter on the unit.
Metered
Input meter: amps, volts, and kW for the whole unit, on the local display and over the network.
Switched
Metered, plus remote on, off, and reboot for every outlet.
Outlet-metered
Current and energy at each outlet, so you know what each server draws.
You can also specify
- Hot-swap network meter module
- C13, C15, C19, C21 and combo outlets
- Self-locking outlets
- SNMP, Modbus, HTTP, web
- Temperature, humidity, leak and smoke sensor ports
An AI neocloud customer
Their PDUs did not fit. So we drew one that does.
An AI neocloud could not find PDUs that fit their cabinets. Stock units were the wrong size.
One 415V, 60A feed. 36 outlets. Remote metering. A body that fits their rack.

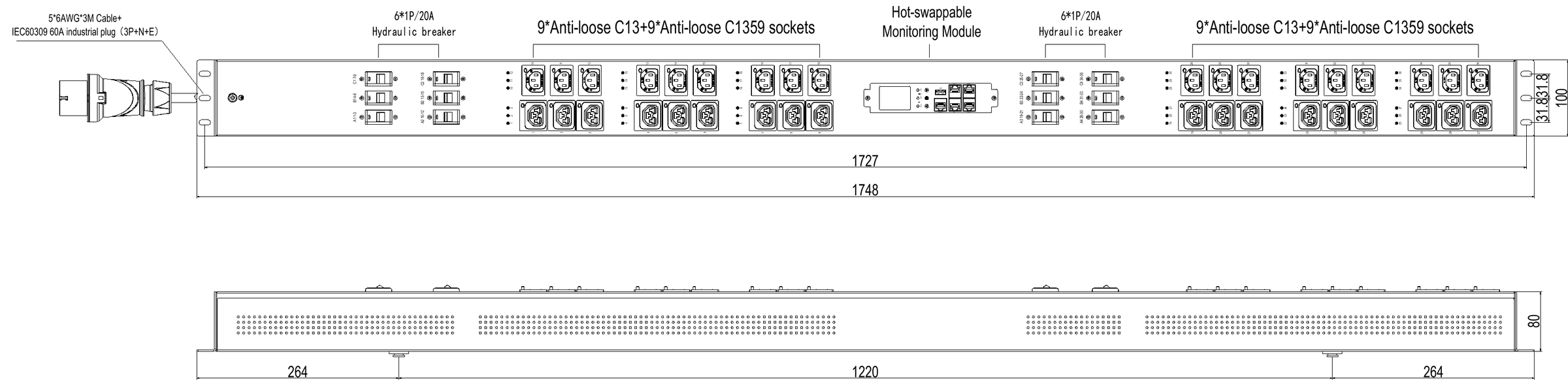

A custom 0U unit: 18 C39 plus 18 C13, 12 hydraulic breakers, hot-swap monitoring module.
Sample unit first. Production follows their sign-off on the sample.
- Input
- 415V 3-phase
- Amps
- 60A (48A rated)
- Plug
- IEC 60309 60A 3P+N+E
- Outlets
- 18 C39 + 18 C13
- kVA
- 34.5
Locking power cords
Locking C13 to C14 cords, in kits of 0.6 m. Matched to the outlets on your PDU.
